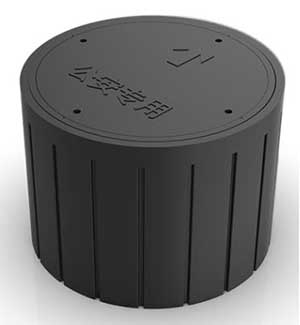

Model: MPD032S

Appearance and Dimensions: 94mm X 64.5mm

- Wireless Channel: 2.4GHz;

- Channel Bandwidth: 2MHz;

- Channels: 16;

- Receiving/Transmission Rate: 250kbps;

- Antenna Type: Block microstrip antenna;

- Antenna Range: 120° (±60°);

- Receiving Sensitivity: -100dBm;

- Detection Mode: Presence/Passage;

- Detection Sensitivity: 0～15 levels;

- Background Magnetic Field Range: ±6Gs;

- Detection Method: Three-axis detection of the Earth's magnetic field, adjustable threshold, automatic calibration for background magnetic field changes;

- Detection Range: Adjustable from 0 to 3 meters;

- Detectable Vehicle Types: Common iron-containing vehicles such as tricycles, trucks, trailers, buses, and cars;

- Main Frequency: 25MHz;

- Flash Memory: 128KB;

- Random Access Memory (RAM): 16KB;

- Wake-up Time: 3.5μS;

- Traffic Flow Accuracy: ≥99%;

- Speed Accuracy: ≥98%;

- Occupancy Time Accuracy: ≥98%;

- Headway Accuracy: ≥98%;

- Detection Speed Range: 0～180km/h;

- Relative Error of Vehicle Speed: ±2km/h;

- Average Power Consumption: Less than 10dBm;

- Service Life: 5 years under the calculation of 20,000 daily traffic flows per lane;

- Power Supply: Li-SOCI2 3.6V battery, 18Ah;

- Protection Class: IP68;

- Protective Structure Design: Double-layer shell structure, double impact resistance;

- Protective Sealing Process: Double-layer ultrasonic welding sealing, double waterproofing;

- Ambient Temperature: -45±2℃～＋85±2℃;

- Humidity: ≤95% non-condensing;

- Detector Sealing Method: The detector adopts an integrated, screw-free and thread-free seal to ensure no water ingress during long-term use;

- Embedding Method: Installed with a geomagnetic rubber sleeve, the upper surface of the detector is flush with the road surface; the drilling diameter is 108mm, and the depth is 70-80mm.

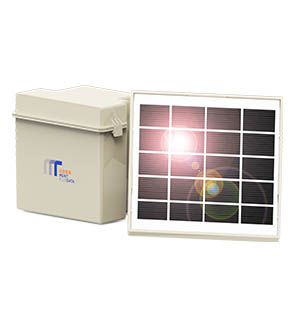

Model: MPD032R

- Wireless Channel: 2.4GHz;

- Channel Bandwidth: 2MHz;

- Channels: 16;

- Receiving/Transmission Rate: 250kbps;

- Antenna Type: Block microstrip antenna;

- Antenna Range: 120° (±60°);

- Receiving Sensitivity: -100dBm;

- Power Supply: Li-SOCI2 3.6V rechargeable battery, equipped with a solar panel.

- Battery Service Life: Over 5 years;

- Protection Class: IP67;

- Ambient Temperature: -45±2℃～＋85±2℃;

- Humidity: ≤95% non-condensing.

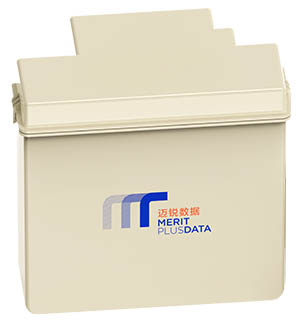

Model: MPD032A

- Wireless Channel: 2.4GHz;

- Channel Bandwidth: 2MHz;

- Channels: 16;

- Receiving/Transmission Rate: 250kbps;

- Antenna Type: Block microstrip antenna;

- Antenna Range: 120° (±60°);

- Receiving Sensitivity: -100dBm;

- Wireless Receiving Distance: 350 meters in visual range;

- Power Supply: 48V DC;

- Protection Class: IP67;

- Ambient Temperature: -45±2℃～＋85±2℃;

- Humidity: ≤95% non-condensing.

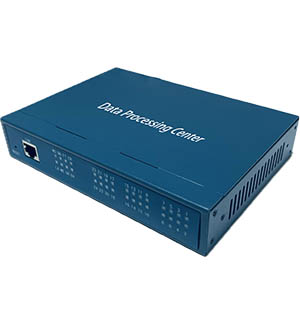

Model: MPD032N1

- Storage Type: SD card, default capacity 8GB, expandable to 16GB;

- Local Data Storage Time: More than 5 years;

- Local Data: Traffic flow, average speed, occupancy, maximum speed, minimum speed, headway, vehicle spacing, average vehicle length;

- Interfaces: RS232, RS485 (with additional conversion interface), Ethernet port, IO (switch/level signal);

- Output Detection Mode: Presence/passage;

- I/O Output Channels: 24 channels, cascade expandable;

- Power Supply: 48V DC/220V AC;

- Ambient Temperature: -45±2℃～＋85±2℃;

- Power Consumption: ＜5W;

- Humidity: ≤95% non-condensing;

- RJ45 Output: Network port outputs parameters such as traffic flow, speed, occupancy, and vehicle spacing.
